We manufacture forged steel rolls which are used
in the steel, non-ferrous and other industries.
Manufactured with a special knowhow, including high
frequency heat treatment technology, this is our
DHF brand rolls made in an integrated production
and control systems from material purchasing to
production.
WORK ROLL
BACKUP ROLL
Remarks
Size
230¥Õ x 4300 x 5245L
240¥Õ x 350 x 586L
Quantity
11 (1Set)
66 (1Set)
Materials
DHF-S1
MARTENSITE
Hardness
W. R 33~38Hs
B. R 30~34Hs

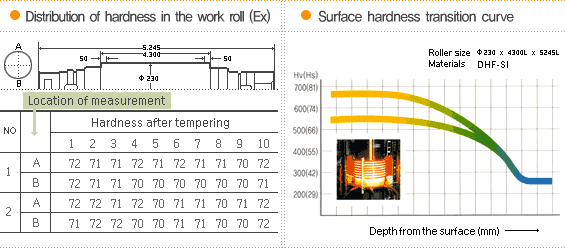

Surface hardness
68~72 (Hs)
55~59 (Hs)
Hardenability
10mm or less (Hs68<)
6mm or less (Hs55<)
Roundness
0.01mm or less
0.01mm or less
Cylinder
0.02mm or less
0.01mm or less
Pair Tolance
0.05mm or less
0.05mm or less
6 Pairs
Shaft vibration
0.02mm or less
0.01mm or less
Yield strength (N/§±)
Tensile strength (N/§±)
Elongation (%)
Reduction of area (%)
Charpy (J/§²)
Hardness (H¬Ó)
Work Roll
660
660
660
660
660
660
Backup Roll
550
550
550
550
550
550

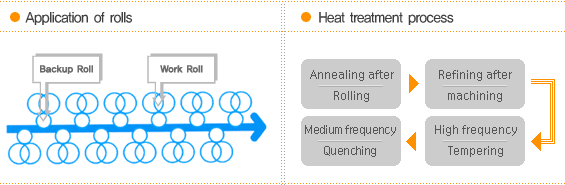

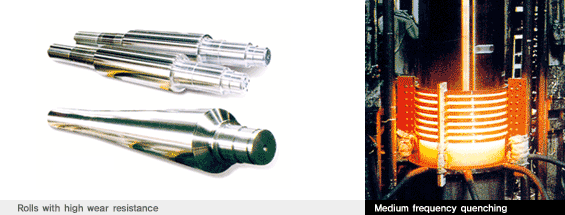

The forged roll requires wear resistance and mechanical
properties depending on the properties of materials
to be rolled and rolling conditions. Therefore selection
of materials, heat treatment conditions and finish
machining and grinding require highly advanced technologies.
With the technology cooperation with Dai-ichi High
Frequency (DHF) Co., Ltd. in Japan, we manufacture
rolls with high hardenability and no reduction of
hardness.
